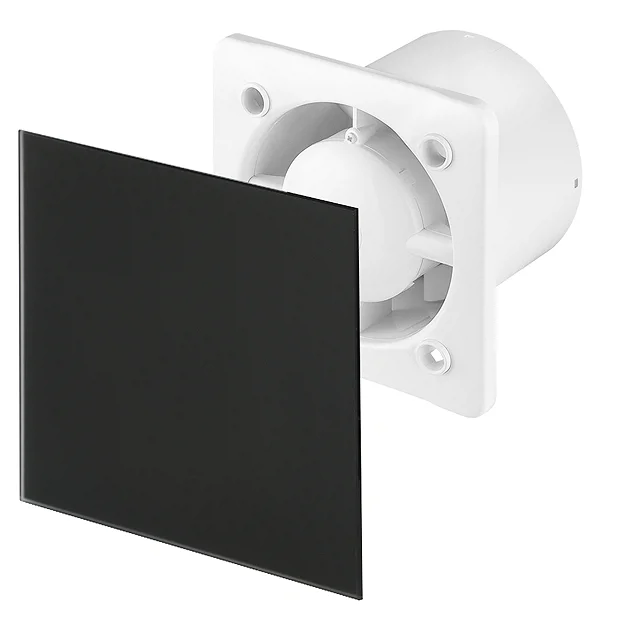

Arezzo 100mm Turbo Extractor Fan – Humidistat – Black Glass

Arezzo 100mm Turbo Extractor Fan – Humidistat – Black Glass

The unobtrusive Arezzo turbo high air exchange capacity bathroom extractor fan uses the latest technology to deliver you optimal performance, comes with decorative black glass front panel. Suitable for a wide variety of fittings such as walls, ceilings and panels.

The humidity sensor detects moisture in the range of 40% to 90% relative humidity. The fan – depending on the connection solution to the network – can be launched automatically or manually.

AUTOMATIC START: the device switches on when the air humidity level exceeds the value set on the H-potentiometer and it switches off after passage of time (defined on the T-potentiometer) counted from the moment of humidity level decrease.

MANUAL START: the fan is activated by the switch being part of the building’s electrical system (not included in the device) or a separate switch intended for fan. After turning off the switch, the device (as in the first case) switches off after the time specified on the T-potentiometer, if the moisture level in the room is below the level set on the H-potentiometer. The moisture detection system is the master system.

Product Details

• Fan Housing Size: 130 x 130 x 88mm
• Front Panel Size: 160 x 160 x 30mm
• Hole Diameter: 100mm
• Front Panel Colour: Black Glass
• Panel Shape: Square
• High air exchange capacity
• Material: ABS plastic
• Ball bearings
• IPX4 – electrically safe for use in the bathroom
• Humidity sensor + timer
• Maximum operating temperature 40°C
• Installation Type: Wall / Ceiling
• Non-return valve (ZZ) usage ability
• Quiet operation – Only 36 decibels
• Air pressure PA: 40
• Airflow per hour: 119
• Standards: CE
• Wattage: 13

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 2 Year

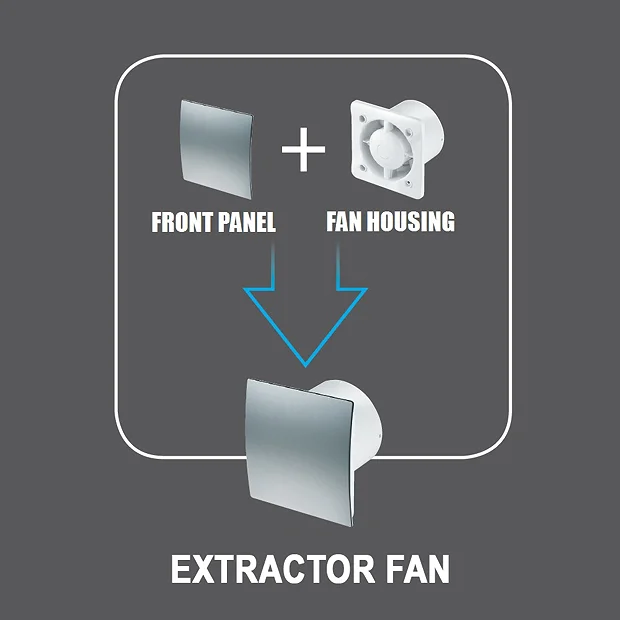

Comprises

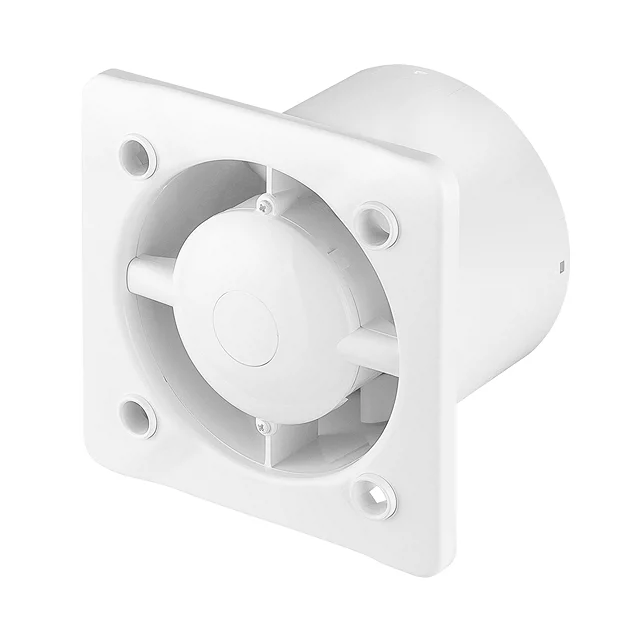

(1) 100mm Turbo Bathroom Fan Housing – Humidistat
(1) Glass Front Panel – Black Glass
